Product Name

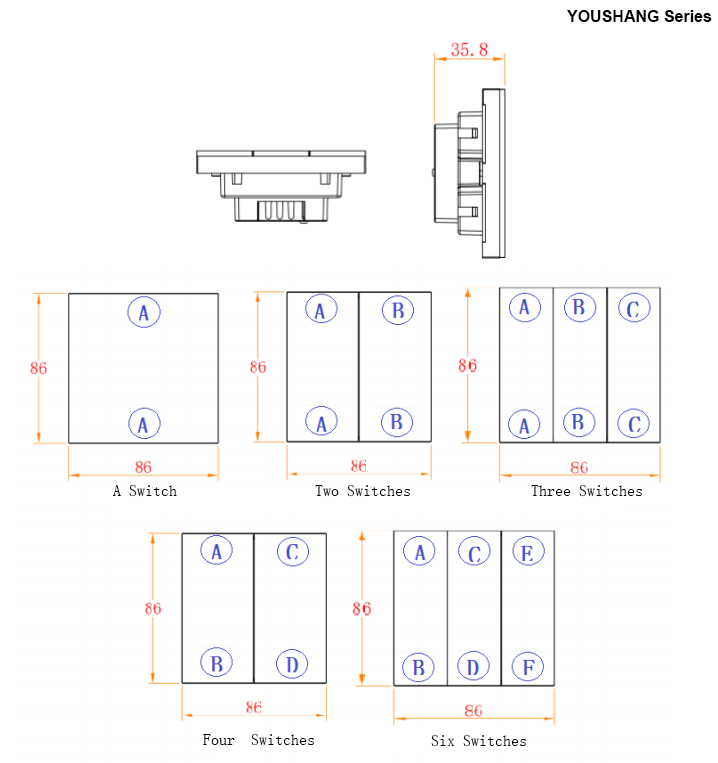

KNX Youshang series button panel

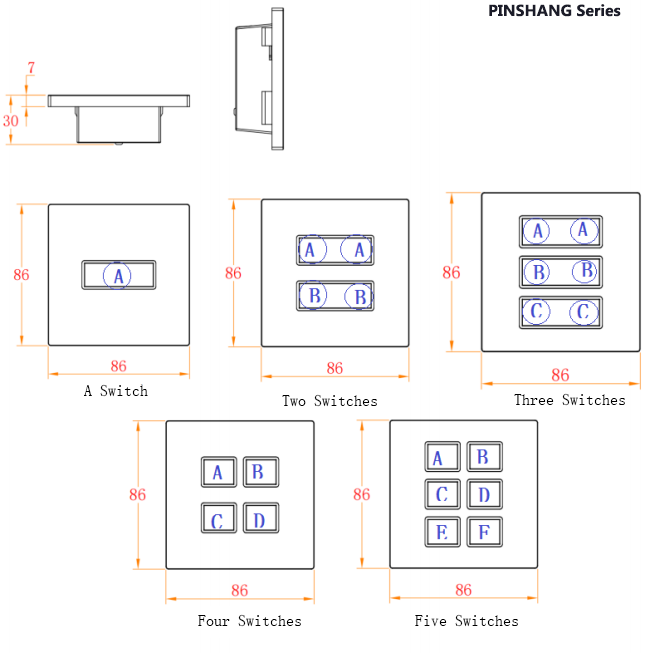

KNX Pinshang series button panel

Model

HKL-M4486T-01-口

HKL-M4486T-02-口

Power Supply

EIB 21-30VDC, obtained through EIB bus

Operating Voltage

Auxiliary power supply

 21~30VDC

EIB Static Current/ Power Consumption

 EIB<12mA/EIB<360mW

Auxiliary Power Supply Static Current/ Power Consumption

DC <50mA /DC <1W

Number of Panel Buttons

1/2/3/4/6 Key

Programming buttons and red LED

Operations and Instructions

The back cover programming button is used for device programming

The red indicator light: represents entering programming mode

The green indicator light: flashing light indicates that the device is running normally

Protection level

IP 20, EN 60 529

Storage

-25 ℃...+55 ℃

Transportation

-25 ℃...+70 ℃

Environmental Conditions

Maximum air humidity<93%, except for condensation

Design

Embedded Installation Devices

Panel Material Plastic

Aluminum; AI2O3

Button Material

Plastic

Plastic

Colors

Grey, Black, Champagne

Silver, Black, Champagne

Dimensions

Weight

86×86×36MM

≈0.1KG

86×86×36MM

≈0.15KG
