Product Name

KNX embedded 6-way universal interface module

Model

HKL/J0601412T

Power Operation Voltage

EIB 21-30VDC, obtained through EIB bus

Quiescent Current

EIB <12mA

Static Power Consumption

EIB <360mW

LED Output

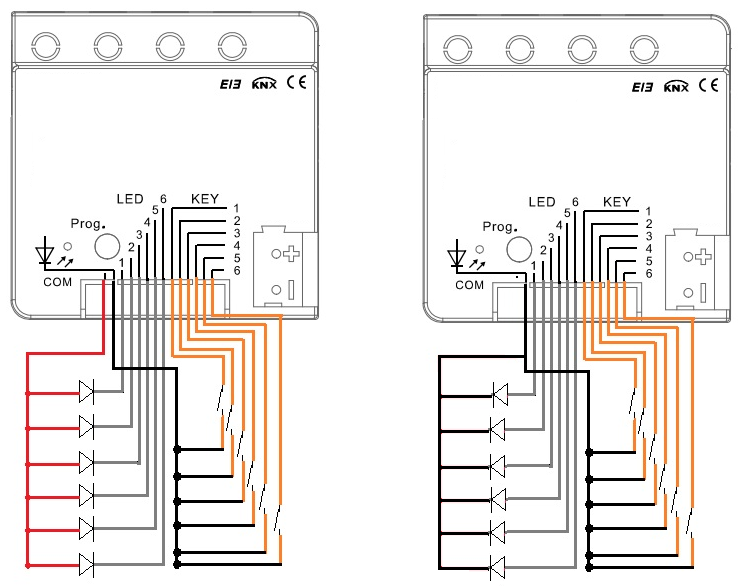

6-Channel，Common cathode or common anode

LED Output Current

1.5mA

Key-in

Input channel 6

Connect

Suitable for screw thread ends;

Suitable for flexible cable ends

EIB/KNX Bus

Connection terminal connection (red/black)

Output Terminal

0.8mm Ø, connected with screw copper terminals

Using Wire Diameter

0.5-4mm²

Torsional Moment

0.8N-m

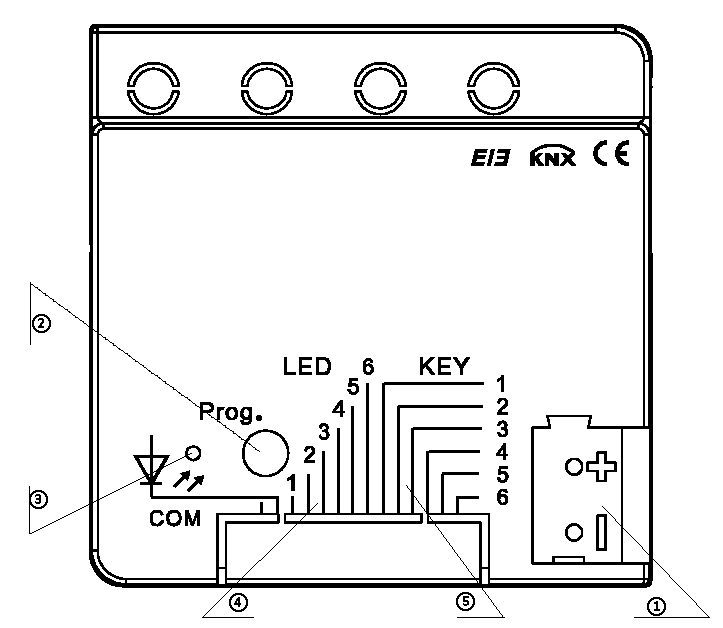

Operations and Instructions

Programming Keys and red LED;

The front buttons of the module are used for device programming;

The red indicator light represents entering programming mode;

The flashing green indicator light indicates that the device is running normally.

Protection Grade

IP 20, EN 60 529

Temperature Range

Run at -5 ℃...+45 ℃

Storage

-25℃…+55℃

Transportation

-25℃…+70℃

Environmental Condition

Maximum air humidity<93%, no condensation

Design

Embedded installation devices

Installation

Installed in standard 86 or 60 square boxes.

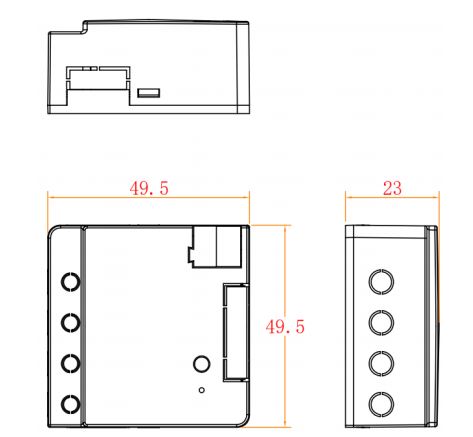

The depth of the junction box should be at least 50mm, and it is recommended to use a 70mm size/weight of 49.3mm × 49.2mm × 22.5mm, approximately 0.1KG.
